6.2m - 6.6m Wide Aluminium Mobile Scaffold Tower
- Regular price
- $6,600.35
- Regular price
-
- Sale price
- $6,600.35
- Unit price
- per
(inc GST)
Experience the ultimate in mobility and convenience with our Wide Aluminium Mobile Scaffold Tower! Easily adjust and lock the wheels in place, while the stabilisers provide added support. Our rust-resistant...
Type: Aluminium Mobile Tower
Vendor:
Proview Scaffolding
Sku:
WT-6.2TDLOK
Availability:
In stock
Out of stock
Couldn't load pickup availability
Dimensions
| Working Height | Platform Height | Width | Length |
| 8.6m | 6.6m | 1.3m | 2.5m |
Tower Inclusions
| Code | Description | Qty |
| CWA8 | 8 Inch Adjustable Castors (200mm) | 4 |
| WF5 | Wide Aluminium Frames (2.0m) | 6 |
| WG1 | Wide Guard Rail | 2 |
| WHB | Horizontal Brace (Gold) | 6 |
| WDB | Diagonal Brace (Blue) | 12 |
| KA-2.5x0.6PH | Platform with Hatch Deck | 6 |
| AL60-03 | 3.0m Aluminium Ladder | 3 |
| S5 | S5 Stabilisers, 3000mm x 1500 | 2 |
| TB25 | Toe Board (2500mm) | 6 |
| TB13 | Toe Board (1300mm) | 6 |
Technical Specs
Share
LEAVE US A MESSAGE
One of our friendly representatives will get back to you shortly
Experience the ultimate in mobility and convenience with our Wide Aluminium Mobile Scaffold Tower! Easily adjust and lock the wheels in place, while the stabilisers provide added support. Our rust-resistant and lightweight construction ensures durability and space efficiency. Quick and easy assembly makes this a must-have for any project!
Adjustable Castor Wheels
Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport.

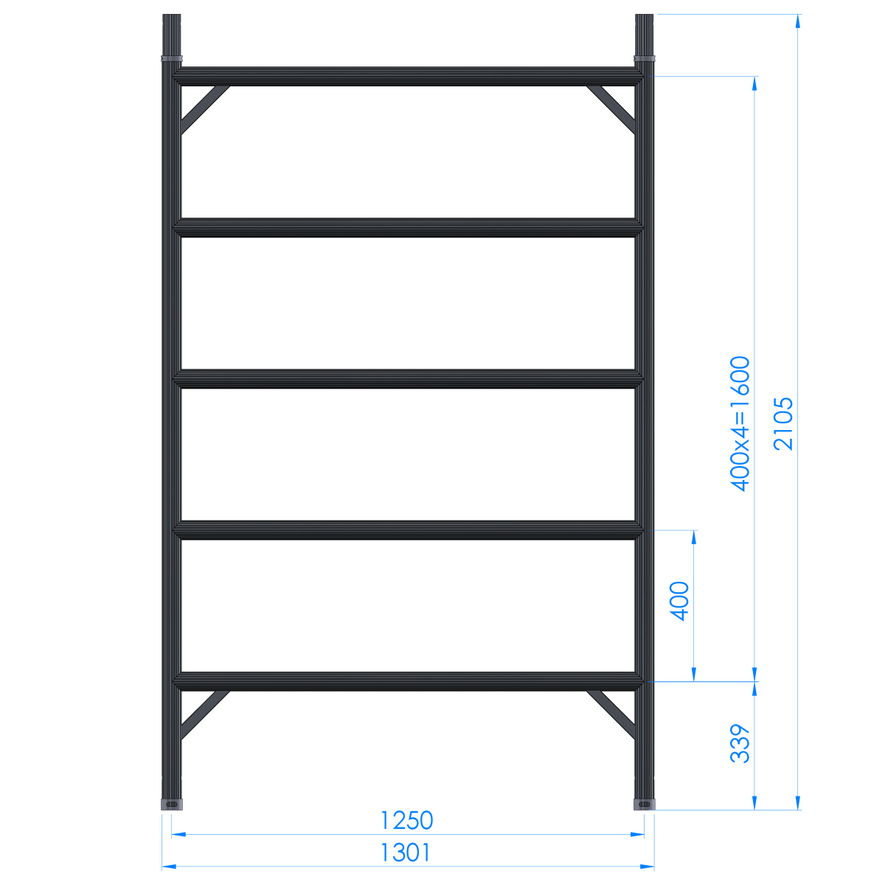

WF5
The larger of the frames for the wide aluminium tower with an overall height of 2.0m.The top of the frames have a spigot which can be used to insert into other frames to extend.The locking pin can be applied for quick safety measures so there is no movement.
WG1
This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the wide tower and has an overall height of 1m.
Horizontal Brace
2.5m horizontal brace with graspers creating the perfect edge protection handrail.
WDB
The diagonal brace is to provide more stability to the structure than the horizontal brace. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
KA-2.5x0.6PH
The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels.
Liquid error (sections/main-product line 1296): invalid url input
AL60-03
Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames.
S5
Stabiliser legs attach to the scaffold via couplers to help stabilise the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip.
TB25
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
TB13
Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
